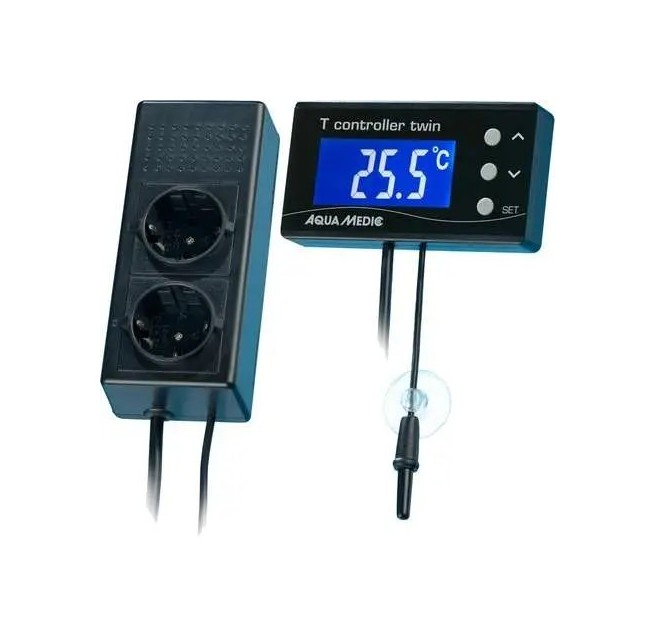

Aqua Medic T controller Twin (hőmérséklet szabályzó)

---

1. Included in shipment
The Aqua Medic Temperature Controller Twin is generally delivered with a saltwater-resistant
temperature sensor. The unit is ready for connection. The units to be controlled (heaters, fans,
coolers) are connected to the double socket.

2. Description
Heaters of any type (i. e. glass or metal aquarium heaters, low voltage heating cables with
transformer, warm water supply by a magnetic valve) can be connected to socket No. 2. The
maximum output is approx. 1,200 Watt. Socket No. 1 is provided for controlling fans or coolers.
The maximum output is again approx. 1,200 Watt. Due to the high starting current, cooling units may be connected only to a power consumption of 400 W

Display: 0.1° C
Measurement range: - 40 up to 99° C
Resolution: 0.1° C
Loading capacity of contact: 1,200 Watt at 220 V AC
Air Humidity: below 80%
Adjustment range: 16 – 40° C,
Adjustment accuracy: +/- 1° C
Power requirements: 220 V, 50 Hz

---
